There are many types of gears because different applications require different ways of transmitting power, handling loads, reducing noise, or changing the direction of motion. Understanding when each gear type is used can help customers choose the right solution for their machinery.

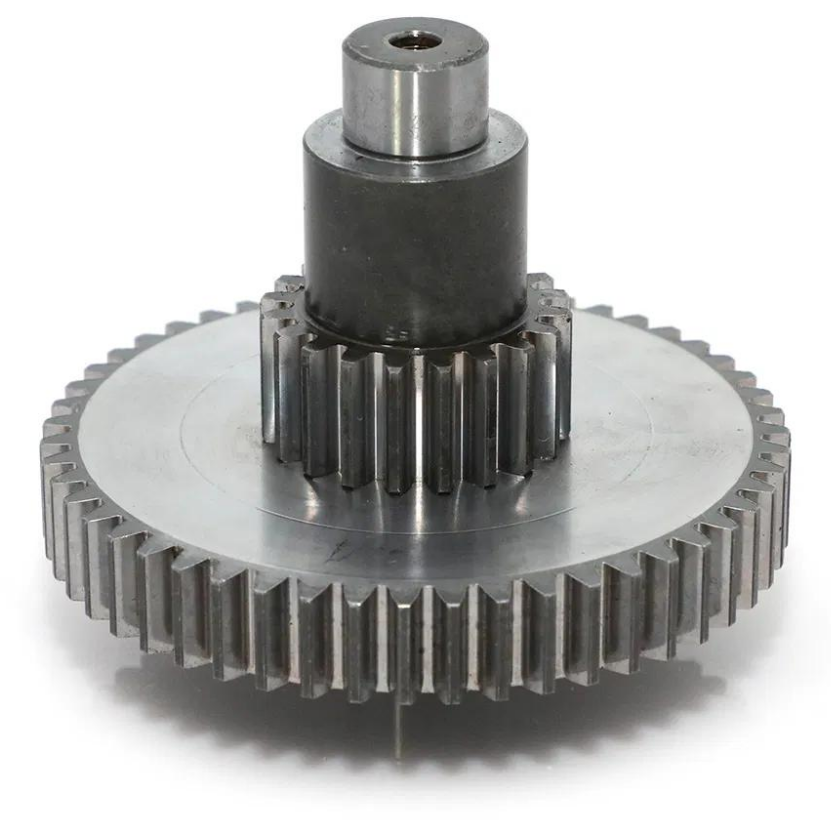

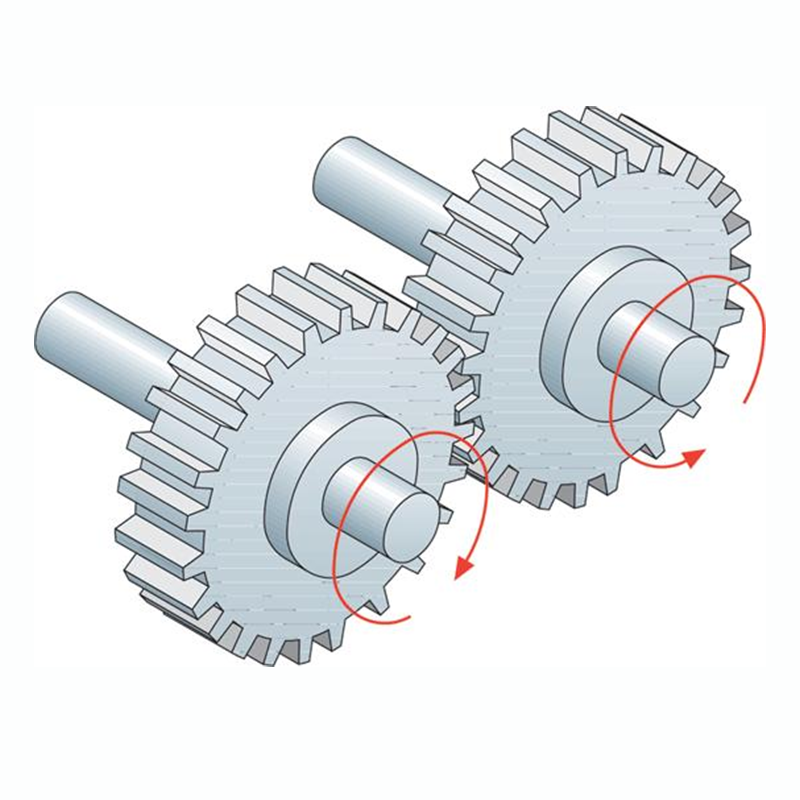

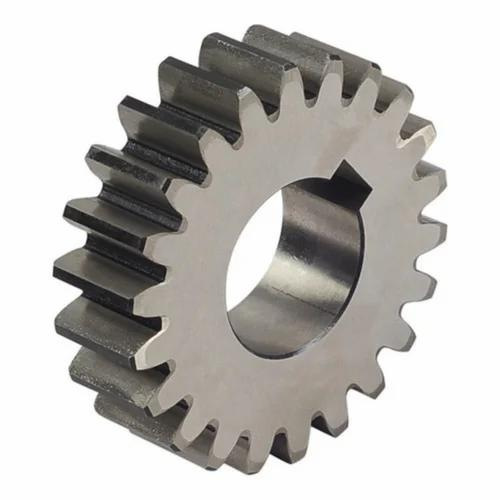

1. Spur Gears
Characteristics
● Straight teeth parallel to the shaft
● Simple design
● High efficiency
● Easy and economical to manufacture
● Agricultural machinery
● Conveyor systems
● Pumps
● Machine tools
● Speed reducers
Typical Applications
When to Use
Choose spur gears when shafts are parallel and cost-effective power transmission is required.

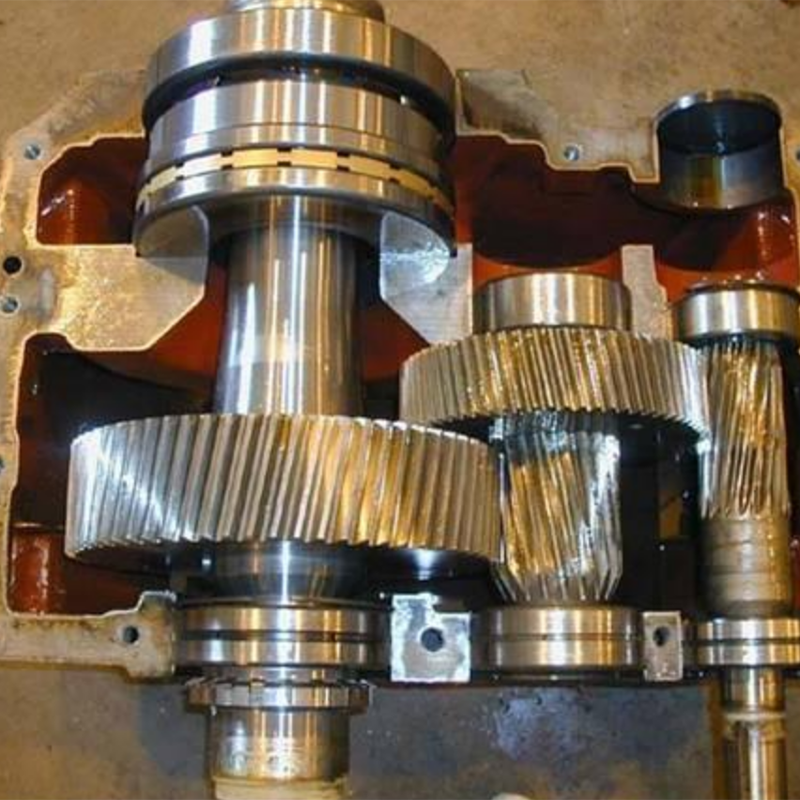

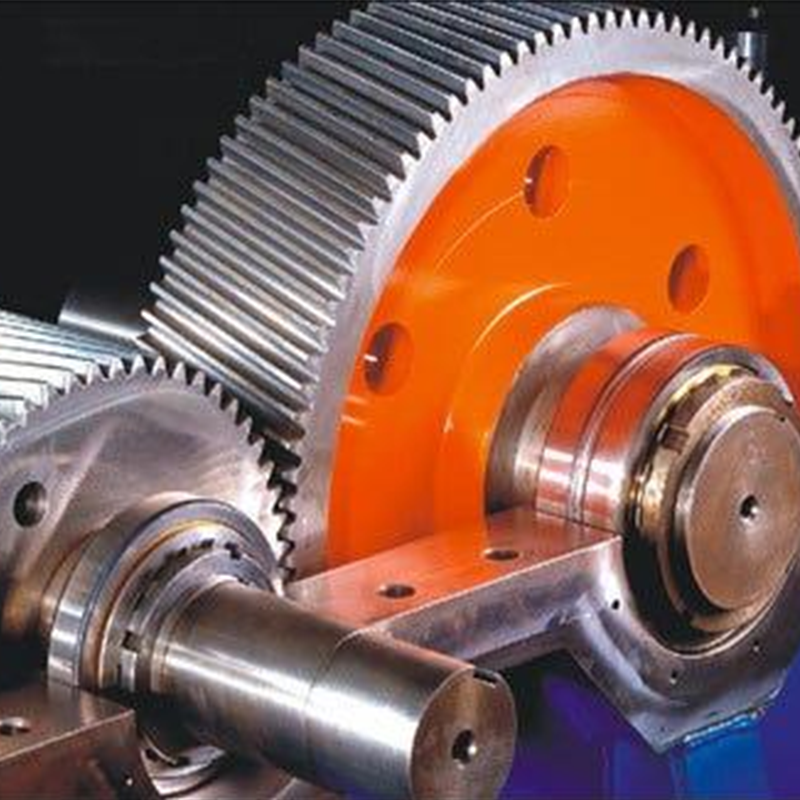

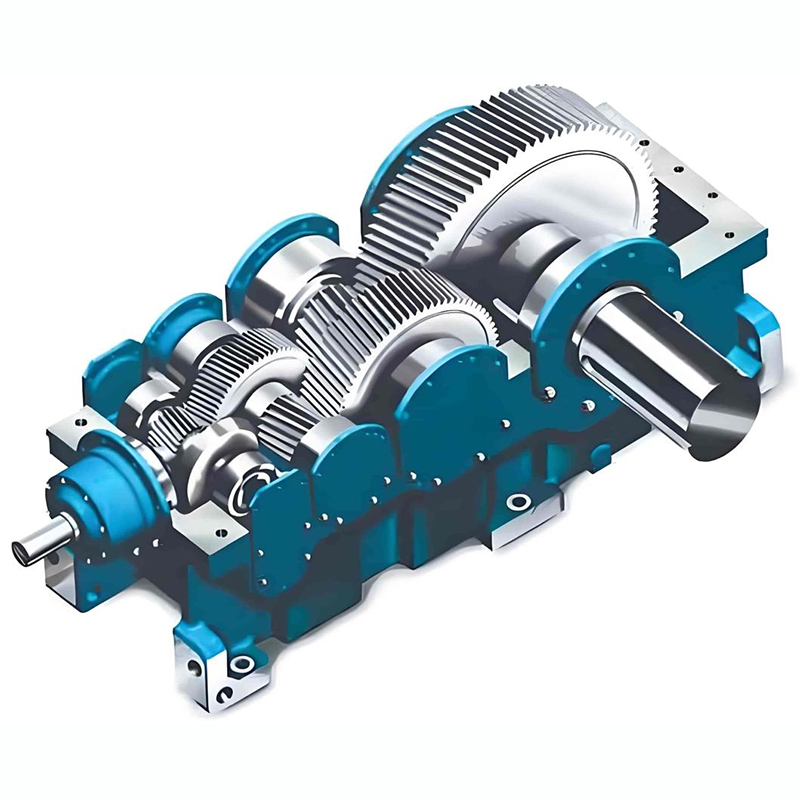

2. Helical Gears
Characteristics
● Teeth cut at an angle
● Smoother and quieter operation
● Higher load capacity than spur gear

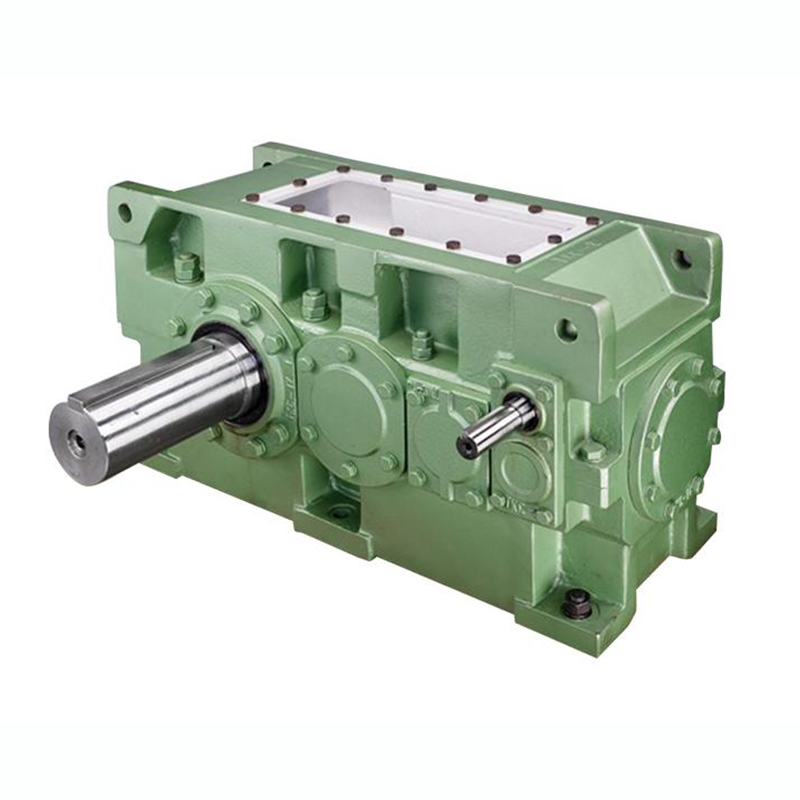

● Industrial gearboxes

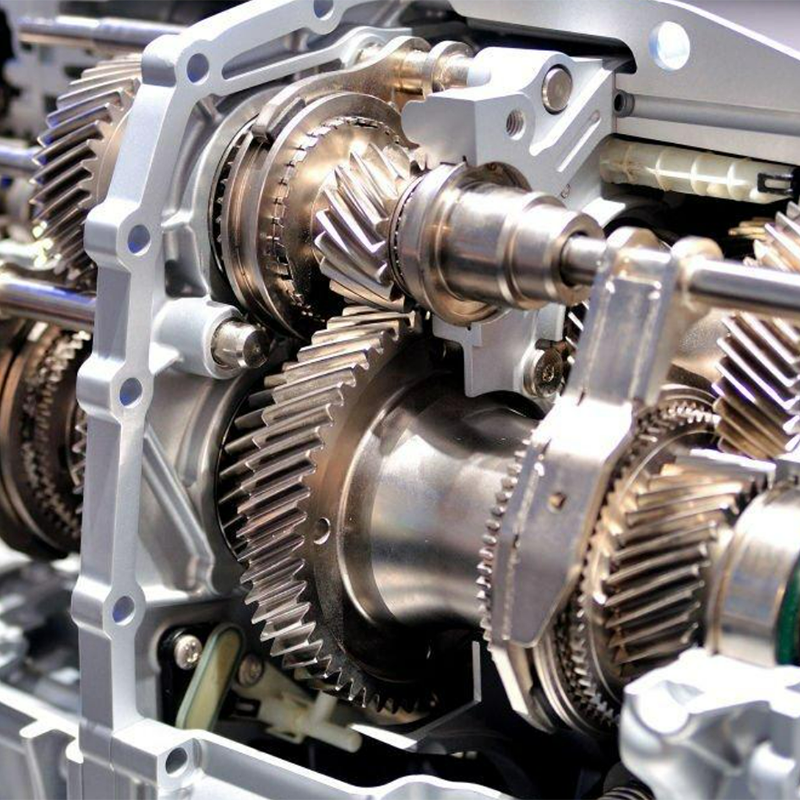

● Automotive transmissions
● Compressors
● Agricultural equipment
Typical Applications
When to Use
Ideal for high-speed applications where noise reduction and smooth operation are important.

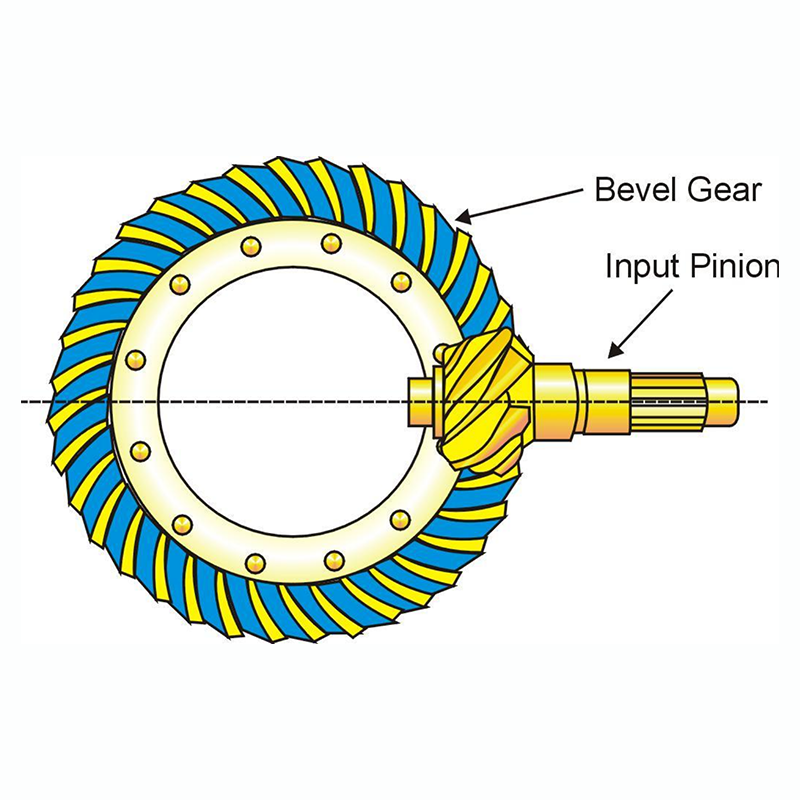

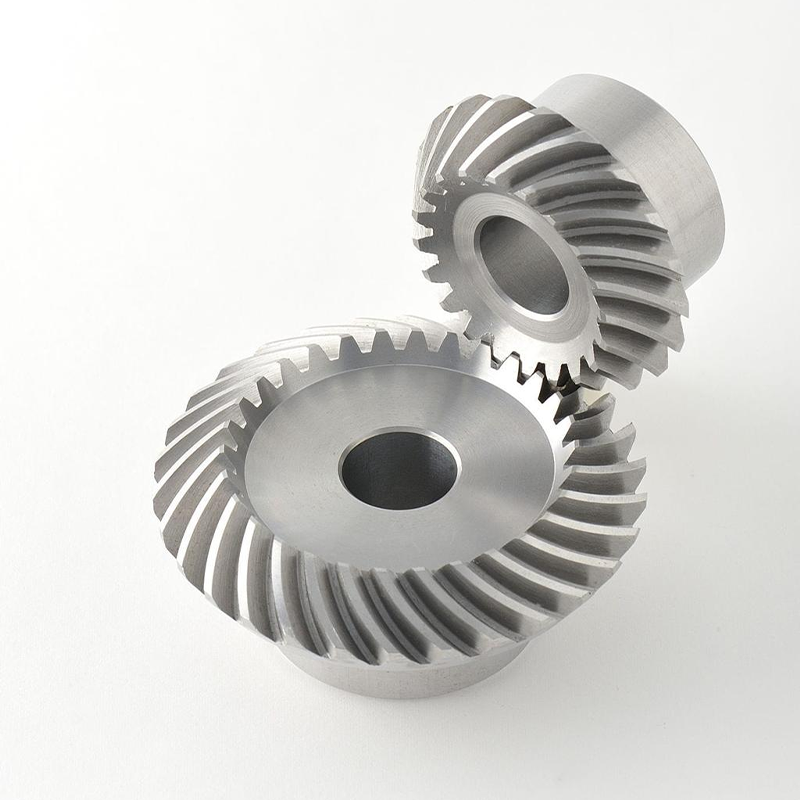

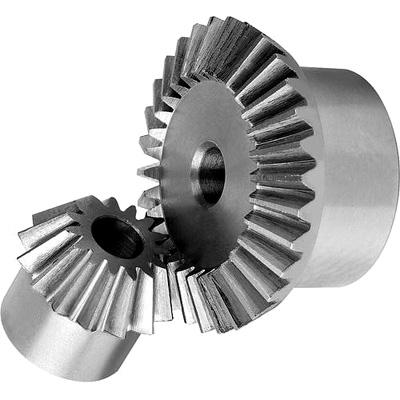

3. Bevel Gears
Characteristics
● Used between intersecting shafts
● Usually changes power direction by 90
● Rotary mowers
● Agricultural gearboxes
● Differential drives
● Packaging machinery
Typical Applications
When to Use
Use bevel gears when power needs to be transferred between shafts that intersect.

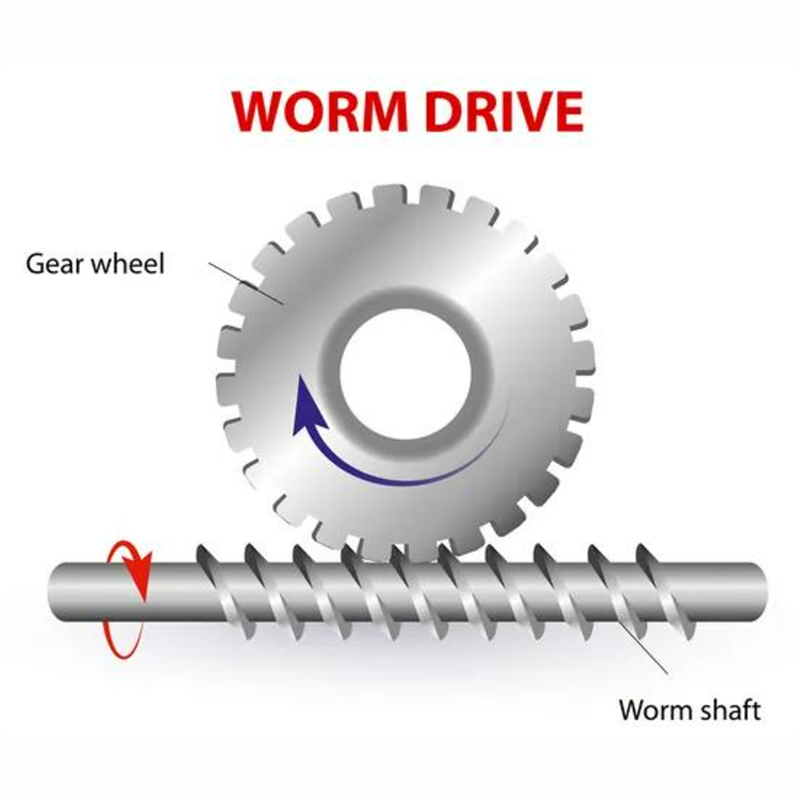

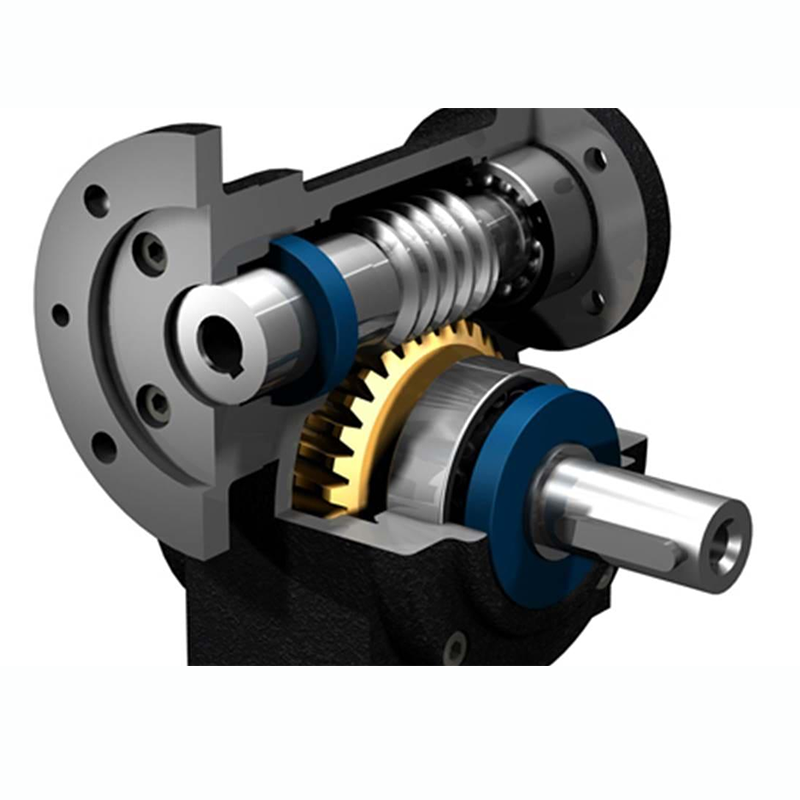

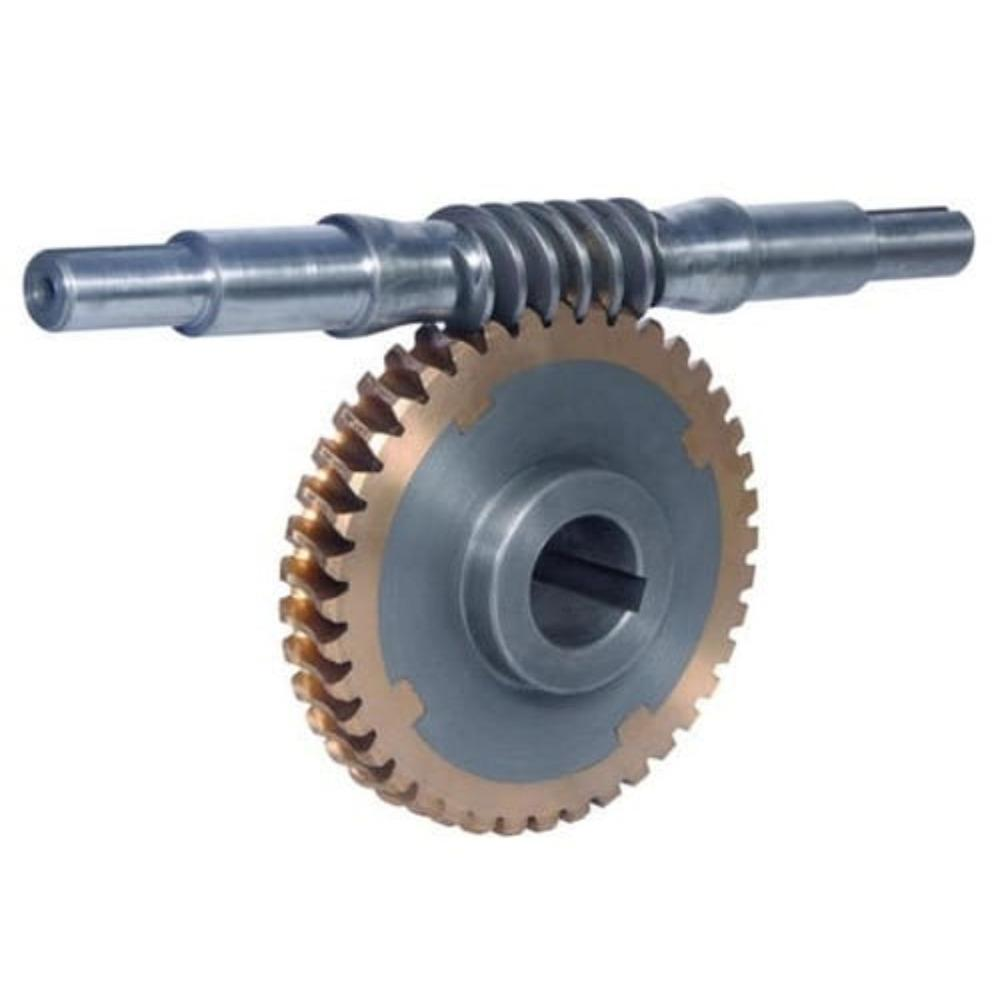

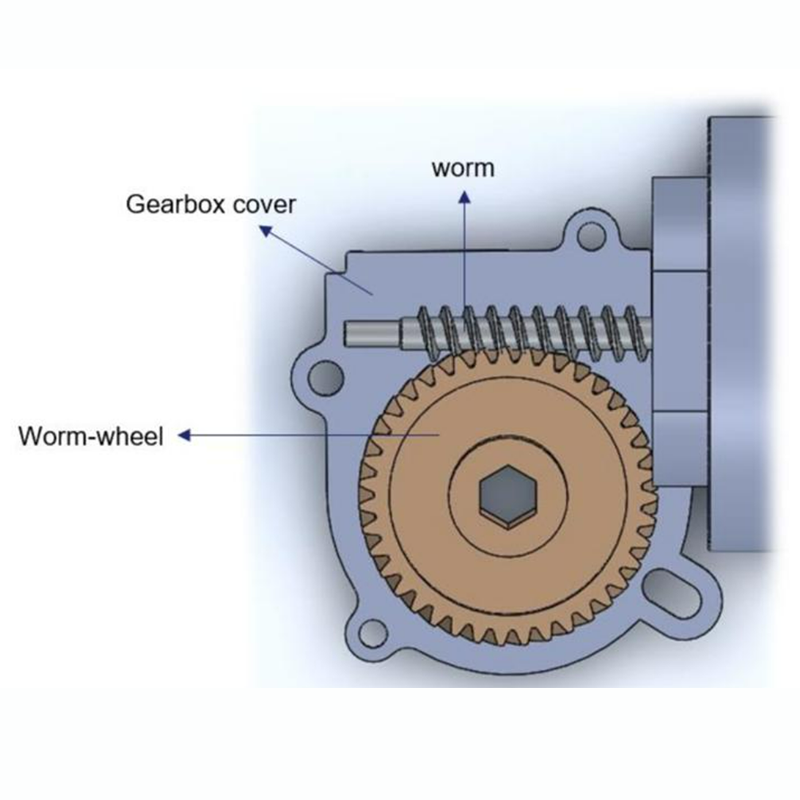

4. Worm Gears
Characteristics
● Very high reduction ratios
● Compact design
● Self-locking capability in some applications
● Lifts
● Conveyors
● Gates and doors
● Material handling equipment
Typical Applications
When to Use
Best when large speed reduction is required in a compact space.
Advantages
● Quiet operation
● High torque outpu
● Self-locking feature

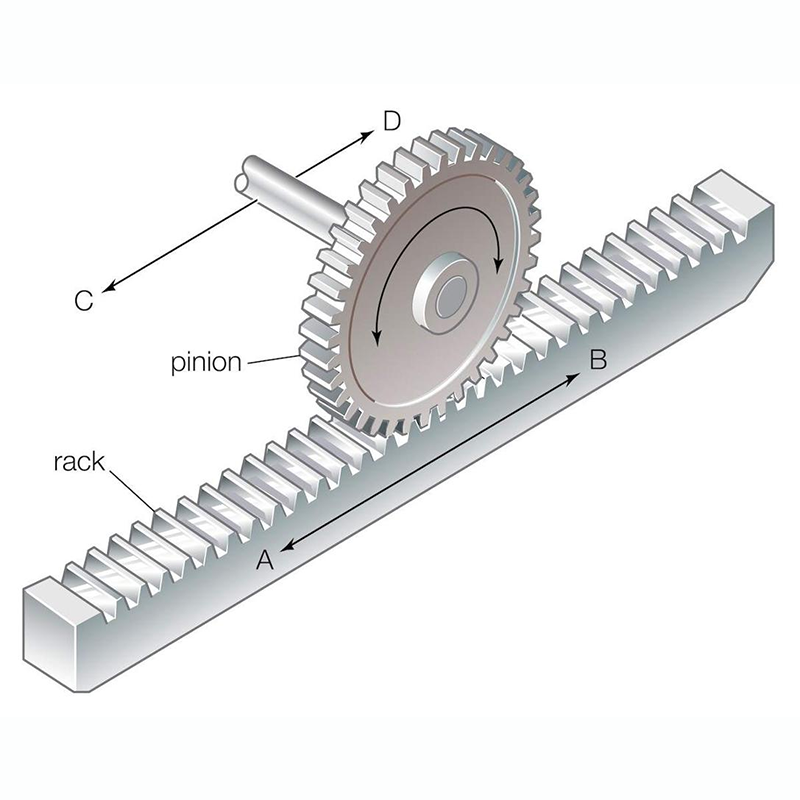

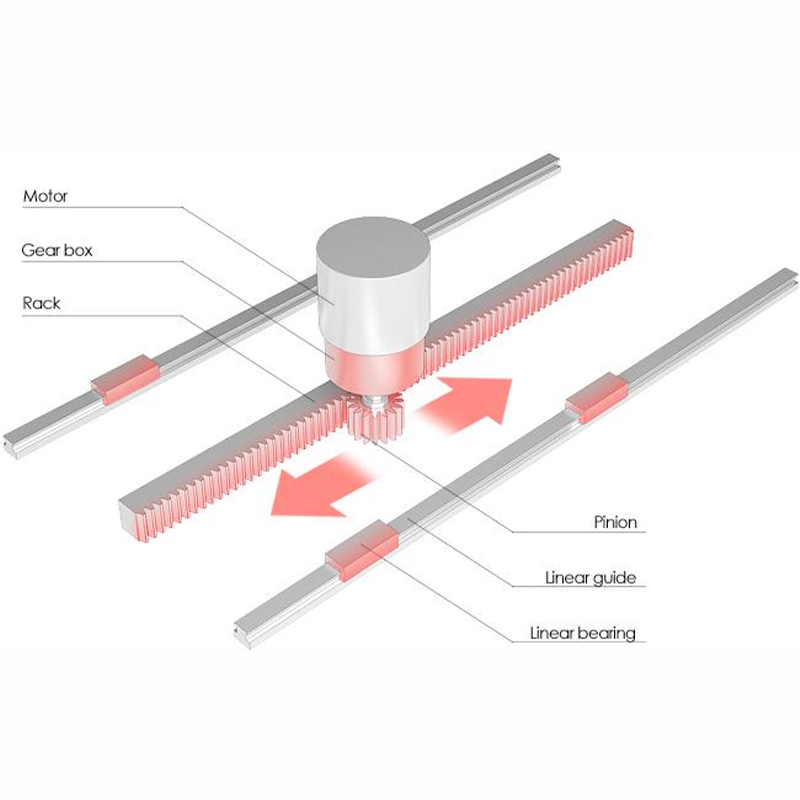

5. Rack and Pinion
Characteristics
● Converts rotary motion into linear motion

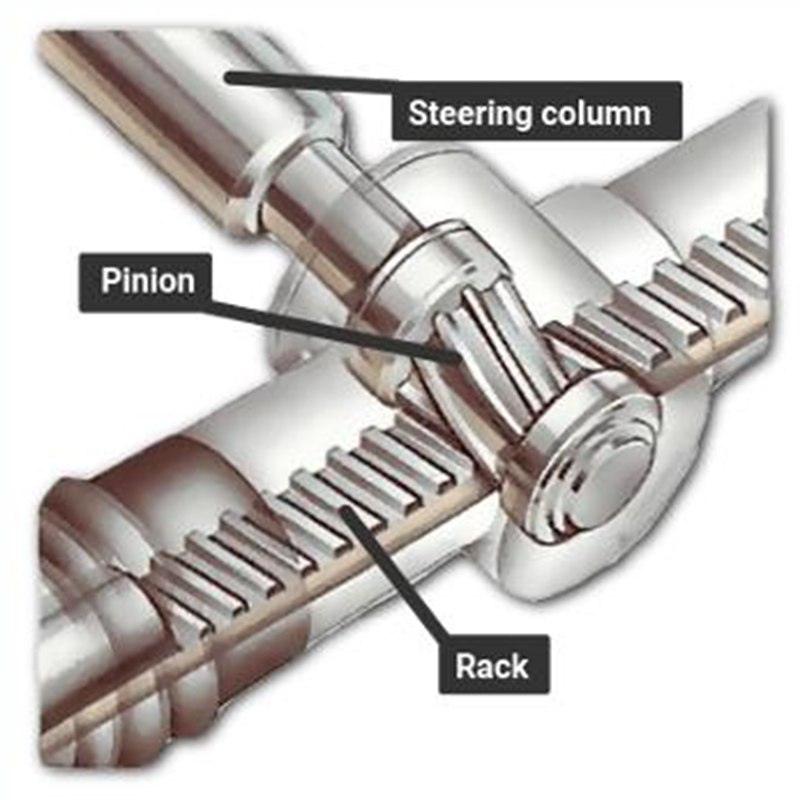

● Steering systems
● CNC machines
● Automation equipment
● Industrial positioning systems
Typical Applications
When to Use
When linear movement is required instead of rotational movement.

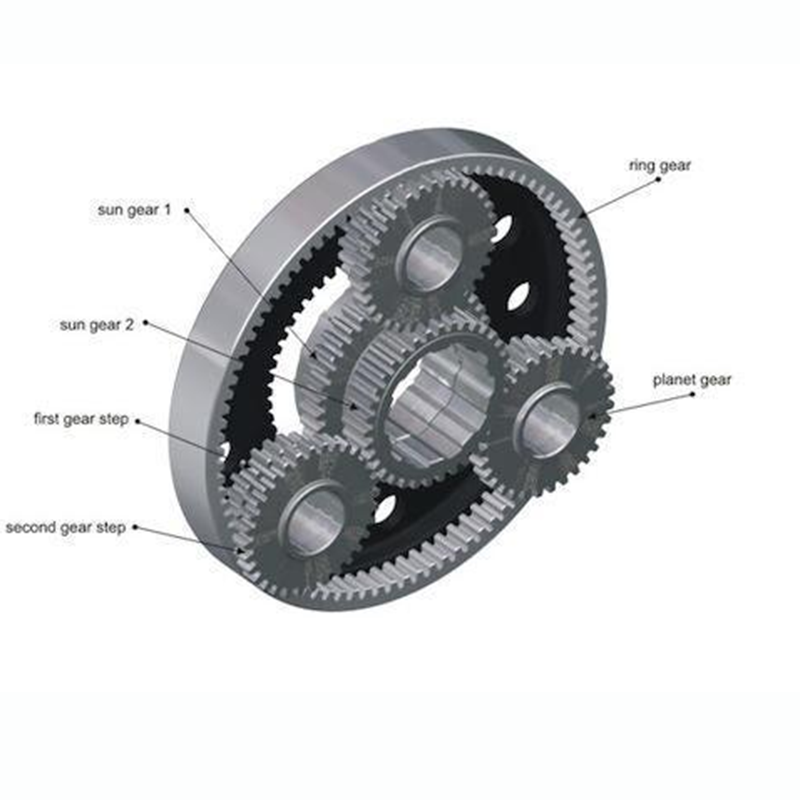

6. Planetary Gears
Characteristics
● Compact structure
● High torque density
● Multiple gears share the load
● Servo systems
● Construction equipment
● Wind turbines
● Robotics
Typical Applications
When to Use
Ideal when high torque and compact size are both required.

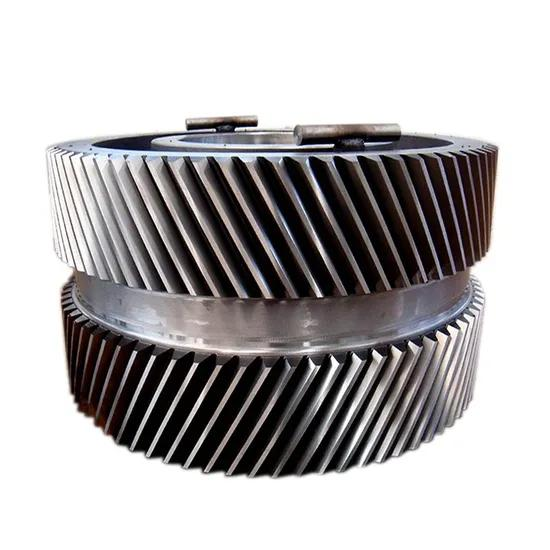

7. Herringbone Gears
Characteristics
● Double-helical design
● Eliminates axial thrust
● Extremely smooth operation
● Marine propulsion systems
● Steel mills
● Heavy industrial machinery
Typical Applications
When to Use
Suitable for very high-power and heavy-duty applications.
8. Internal Gears
Characteristics
● Teeth are cut on the inside surface of a ring
● Commonly used in planetary gear systems
● Planetary gearboxes
● Automatic transmissions
● Precision reducers
Typical Applications
When to Use
When compact and high-ratio transmission systems are needed.
Quick Selection Guide
|
Requirement |
Recommended Gear |
| Lowest cost | Spur Gear |
| Quiet operation | Helical Gear |
| Change shaft direction (90°) | Bevel Gear |
| High reduction ratio | Worm Gear |
| Linear movement | Rack and Pinion |
| High torque in compact size | Planetary Gear |
| Heavy-duty industrial loads | Herringbone Gear |
| Compact transmission system | Internal Gear |
